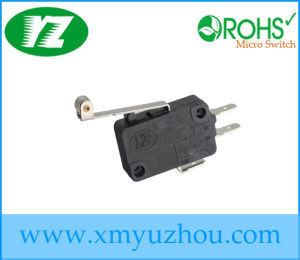

    Mini Long Roller Snap Switch 16A for 250V Voltage and Operating Force of 0.5n-4n

    Ask Lasest Price
    Supply Ability : 1000000/Month
    Payment Terms : T/T, Western Union, Paypal, Money Gram
    Certification : ISO 9001
    Price : Negotiable
    • Product Details
    • Company Profile

    Mini Long Roller Snap Switch 16A for 250V Voltage and Operating Force of 0.5n-4n

    Basic Info.

    Model NO.
    V-16-1A5C
    The Theory
    Mini Long Roller Snap Switch
    Operating Force
    0.5n~4n
    Current
    16A
    Voltage
    250V
    Trademark
    YZ
    Transport Package
    Standard Export Package
    Specification
    ISO/CB/TUV/CQC
    Origin
    Xiamen, Fujian
    HS Code
    85365000

    Product Description

    Mini Long Roller Snap Switch

    Characteristics and usage:

    *Safe reliable basic switch.

    *Nice appearance, tight configuration, characteristic, quick action and high sensitivity.

    *Long life, high reliability.

    *Variety of contact terminals.

    *Variety of levers.

    *A variety of models with low operating force to high force are sensitivity.

    Apply to microwave oven, air condition, electric cooker, dishwasher, cleaner, humidifier,
    Water heater, electric drill, electric radiator, joystick, TV game, time recorder, solder gun, mixer,
    Food processor, juice maker, alarm, mixer, shredder machine, etc.

    1.
    Degree of
    Temperature


    No Mark: T125


    5.
    Terminal Types
    A: 250 Quick-connect Terminal
    B: 187 Quick-connect terminal(Thick: 0.8)
    C: 187 Quick-connect terminal(Thick: 0.5)
    D: Solder/187 common terminal
    E: Screw terminal
    F: Solder terminal
    G: 250 Quick terminal No. 2
    Y: Not standard terminal


    2.
    Ratings

    16: 16(4)A250VAC/16A125VAC
    1/2HP 125/250VAC
    10: 10(3)A250VAC/10A125VAC
    6: 6(2)A250VAC/6A125VAC
    1: 1(1)A250VAC/1A125VAC


    6.
    (max)
    Operating Force
    051: 0.5N
    025: 0.25N
    050: 0.5N
    100: 1N
    150: 1.5N
    200: 2N
    300: 3N
    400: 4N


    3.
    Connect Forms

    1A: SPDT
    2A: SPST-NO
    3A: SPST-NC



    7
    Plunger specs
    No mark: Standard Plunger
    A: Middle Plunger
    B: Long Plunger
    C: Abnormality Plunger
    ( see dirgram )
    Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company)





    4.
    Acuator forms
    0: No lever
    A 1/1: Short lever
    A 2/2: Long lever
    A 3/3: Middle lever
    A 4/4: Short Roller
    A 5/5: Long Roller
    A 6/6: Arc lever
    A /: Not standard lever

    Note:
    1) A indicate the lever near to the
    Plunger, no A indicate the lever far
    Away from the plunger.
    2) If lever is amounted besides, add letter" B" after the lever code.
    3) Indicate not standard lever


    8.
    Additional Specis Numbers
    Apply to:

    1)When used not standard parts such as not standard terminals;
    2)When Customer has particular Operating value or other requirement
    3) When the case is mot black, for example, grey shows as G.
    Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant
