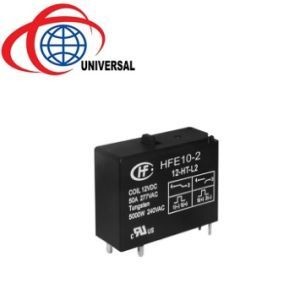

    2-Pole 2-Phase Hongfa Hfe10 High Power Relay for Heavy-Duty Applications

    Ask Lasest Price
    Supply Ability : 2000 PCS/Day
    Payment Terms : L/C, T/T, D/P, Western Union, Paypal, Money Gram
    Certification : ISO 9001
    Price : Negotiable
    • Product Details
    • Company Profile

    2-Pole 2-Phase Hongfa Hfe10 High Power Relay for Heavy-Duty Applications

    Basic Info.

    Model NO.
    HFE10
    Theory
    Electromagnetic Relay
    Usage
    Household Appliances Relay
    Phase
    2
    Electricity Type
    Ac
    Number of Pole
    2
    Load
    High Power Relay
    Protective Characteristics
    Open Relay
    Action Principle
    Electromagnetic Type
    Size
    Miniature
    Type
    Electric Parameter Relay
    Leading Time
    2-4 Weeks
    Trademark
    Hongfa
    Transport Package
    Standard Exporting Packing
    Specification
    ISO
    Origin
    Fujian, Xiamen

    Product Description

    MINIATURE HIGH POWER LATCHING RELAY
    Relay Type:HFE10
    · 50A switching capability
    · Lamp load up to 5000W
    · Motor load up to 5HP
    · Max. inrush current 500A/2ms
    · Dielectric strength: more than 4kV
    (between coil and contacts)
    · Manual switch function available
    · Relays with 1.5mm contact gap are available
    · Environmental friendly product (RoHS compliant)
    · Outline Dimensions: (39.0 x 15.0 x 30.2)mm
    Contact Data
    Contact Arrangement:1A,1C,1B
    Contact Resistance:AgSnO2
    Contact Rating:1A,1B:50A 250VAC,
    1C:40A 250VAC
    Max. switching Voltage:440VAC
    Max. Switching Power:1H: 12500VA
    1Z: 10000VA
    Mechanical Endurance:1×106OPS
    Electrical Endurance:1×105OPS(1A,1B)
    Characteristics
    Insulation Resistance:1000MΩ
    Dielectric Strength:4000VAC
    Operate Time (max):15ms
    Release Time (max):15ms
    Ambient Temperature:-40ºC ~ 70ºC
    Terminal Type:THT
    Coil Data
    Nominal Voltage:(6~48)VDC
    Coil Power:1.5W, 3.0W
