| Item | Value | |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) | |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 30 cycles/min | |
| Insulation Resistance | ≥ 100 MΩ (500VDC) | |
| Contact resistance | OF> 0.5N: ≤ 30mΩ (see note) OF≤ 0.5N: ≤ 50 mΩ (see note) | |
Test Voltage | Between terminals of the same polarirty | AC1000V, 50/60Hz, 1min |
| Between current-carrying metal And ground(case), and between Each terminal and non-carrying metal parts | AC1500V, 50/60Hz, 1min | |
| Vibration resistance | 10-55Hz, 1.5mm Double amplitude | |
Shork Resistance | Destruction: OF> 0.5N: 1000m/s ² (approx. 100G)max OF< =0.5N: 500m/s ² (approx. 50G)max Malfunction: OF> 0.5N: 300m/s ² (approx. 30G)max OF< =0.5N: 200m/s ² (approx. 20G)max | |
| Life Expectancy | Mechnical> =1000000 cycles Electrical> =50000 cycles | |
| Degree of protection | IEC IP40 | |
| Degree of protection against electric shock | Class I | |
| PTI(Tracking Resistance) | 175 | |
| Ambient air temperature | -25~+85Degree60%RH below(No ice and dew) | |
| Ambient air humidity | 85% RHbelow(about +5~+35 Degree) | |
| Weight | Approx. 1.6g(No lever) | |
| Degree of temperature | No mark: 25T85 | 6. Operating Force (max) | 050: 0.5N 100: 1N 150: 1.5N 200: 2N 300: 3N | |
3. Connect Forms | Z: SPDT T: SPST-NO D: SPST-NC (See Diagram) | |||
7. Plunger specs | No mark: Standard Plunger A: Short Plunger B: Long Plunger C: Abnormality Plunger ( see dirgram ) Notice: If adopt other not standard plunger, the indicate with the new spec(confirmed by our company) | |||

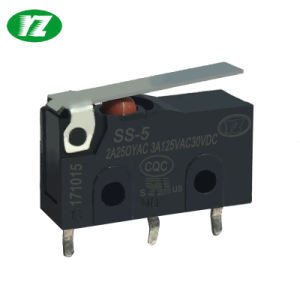

4. Acuator Forms | 0: No lever 1: Short lever 2: Long lever 3: Middle lever 4: Short Roller 5: Long Roller 6: Arc lever Note: Indicate not standard lever | |||
8. Additional Specis Numbers Apply to: | 1)When used not standard parts such as not standard terminals; 2)When Customer has particular Operating value or other requirement 3) When the case is mot black, for example, grey shows as G. Additional specs number shows by Arabic numerals or Latin. color code after the numbers. If there is no Additional numbers, the place is vacant | |||
5. Terminal Type | F: Solder terminal P: PCB terminal L: Left side PCB terminal R: Right side PCB terminal T: Quick-connect terminal Y: Not standard terminal |
|
|
