Basic Info.
Number of Switch
Single Control Switch
Breaking Capacity
General Type
Application
Heater/Radiator
Theory
Micro Switch for Heaters
Rating
16A 125VAC/16A 250VAC
Delivery
FedEx/UPS/TNT/DHL
Transport Package
Standard Export Package
Specification
CE, CB, TUV, CQC
Product Description

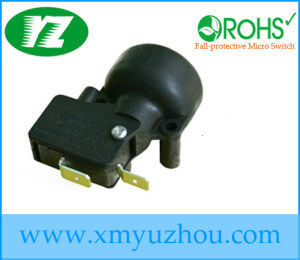

Micro Switch Fall Protection
Characteristics and usage:
*Nice appearance, tight configuration, characteristic, quick action
and high sensitivity.
*Long life, high reliability.
*Variety of contact terminals.
*Apply to Electric Warmer, Electrical fan home appliance,
Electronic equipment.
Working Principle:
As the main body is standing, Fall-protective switch's sphere with
its gravity is on the lever of switch, so that Micro switch can
work with load.
When the main body is inclining, Fall-protective switch's sphere
with its gravity will off the lever of switch and Micro switch
can't work without load.
Why Choose Us?
Xiamen Universal Electronic Co., Ltd, is a professional company of
switch control device and semiconductor component separator,
shutter motors etc electrical appliance company. After years of
efforts of all colleagues, the support of customers and suppliers,
we now have the business department of the electronics switch and
Integrated Department of Market Operation. The business department
of the electronics switch is engaged in R & D and manufacturing of
the medium and small electronic switches; The Integrated Department
of Market Operation is responsible for the Integration Services of
information gathering, selling, trading and so on. Our products
cover a wide range, including micro switch, tact switch, push
switch, metal dome switch, relay, low-voltage devices, rectifier
bridge, ect. Those products are widely exported to more than 40
countries all over the world.
Spirit of Enterprise:
Force Ahead, Never Stop
Core Values:
Through the work together to promote enterprise development, for
society and the contribution of the shareholders at the same time,
make great efforts to seek interests for the employees better.
Management Idea:
Take the market as the guide, quality win.
Quality Policy:
To provide perfect quality products and services, is each
employee's code of conduct.
Certificates:
Focusing on products that are truly superior and innovative, our
products have been awarded ISO9001 Quality Certification, have
CB/TUV/CQC certificates.
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian,
China
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions,
please connect us freely. We will answer you as soon as possible.
| Item | Value |
| Fall-Protect | Action Angle:30-50°;Reset Angle:>15°;The Error of Action
Angle:±5° |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 6 cycles/min |
| Insulation Resistance | 100 MΩ(500VDC) |
Contact Resistance | Gold-plated | Below 15 mΩ |
| No Gold-plated | 30-40 mΩ |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC2000V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Let switch fall freely from 200mm high into the cement flool or
Armor plate horizontal.
One time,one side(Up,dowm,left,right,front,back) |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=10000 cycles |
| Degree of protection | IEC IP40 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125Degree 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35Degree) |
| Weight | Approx.39.7g |
| | | |
